3034 - BMW Timing Tool Kit - B38/B46/B48/First-Generation B58

• Used to set and verify engine timing on listed BMW and MINI B-series gasoline engines
• Locks the camshafts and crankshaft in the timing position for timing-chain replacement, cylinder-head service and related engine repairs

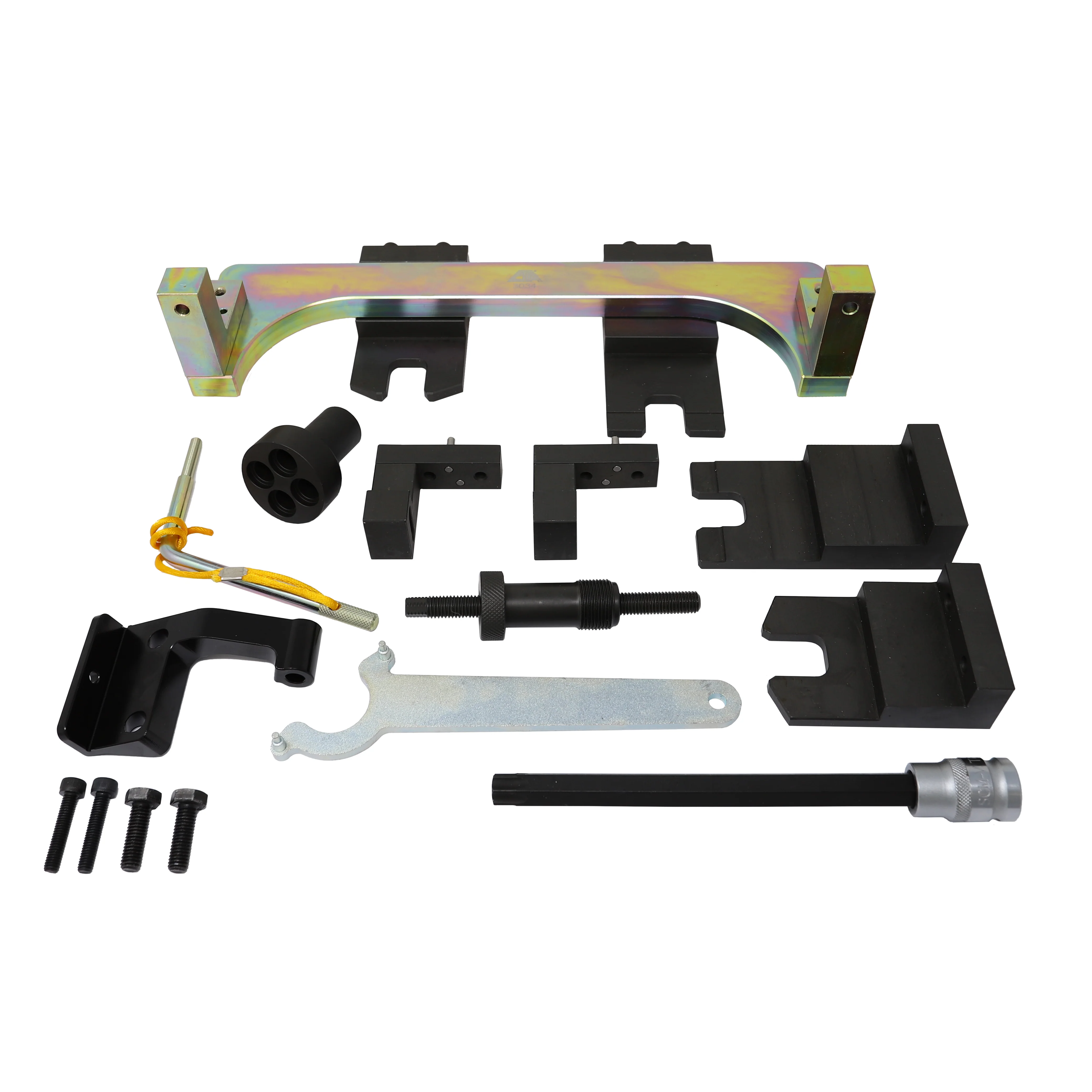

• Includes the camshaft alignment bridge and interchangeable alignment blocks, crankshaft positioning tools, crankshaft turning tool, VANOS service tools and timing-chain pretensioning tool for applicable original-generation engines
• Services select 1.2L, 1.5L, 1.6L, 2.0L and 3.0L B36, B38, B46, B48 and first-generation B58 engine applications
• Compare to BMW factory tools:
  • 11 6 480
  • 11 8 580
  • 11 9 340
  • 2 288 380
  • 2 358 122
  • 2 360 895
  • 2 365 488
  • 2 456 372 / 83 30 2 471 127

• Important: Kit does not include timing-chain pretensioning tool 2 455 654 / 83 30 2 455 654. CTA 3034 is not a complete timing-service kit for B46TU, B48TU, B58C, B58TU or other applications whose factory procedure requires this additional pretensioning tool
• Always confirm the engine version and applicable factory repair procedure before use

Applications

Make	Model	Chassis	Engine	Years
BMW	230i / 230i xDrive	F22, F23	B46 2.0L	2017-2021
BMW	M240i / M240i xDrive	F22, F23	First-generation B58 3.0L	2017-2021
BMW	330e iPerformance	F30	B48 2.0L	2016-2018
BMW	330i / 330i xDrive	F30	B46 2.0L	2016-2018
BMW	330i xDrive Sports Wagon	F31	B46 2.0L	2017-2019
BMW	330i xDrive Gran Turismo	F34	B46 2.0L	2017-2019
BMW	340i / 340i xDrive	F30	First-generation B58 3.0L	2016-2018
BMW	340i xDrive Gran Turismo	F34	First-generation B58 3.0L	2017-2019
BMW	430i / 430i xDrive	F32	B46 2.0L	2017-2020
BMW	430i / 430i xDrive Convertible	F33	B46 2.0L	2017-2020
BMW	430i / 430i xDrive Gran Coupe	F36	B46 2.0L	2017-2020
BMW	440i / 440i xDrive	F32	First-generation B58 3.0L	2017-2020
BMW	440i / 440i xDrive Convertible	F33	First-generation B58 3.0L	2017-2020
BMW	440i / 440i xDrive Gran Coupe	F36	First-generation B58 3.0L	2017-2020
BMW	530e / 530e xDrive	G30	B48 2.0L	2018-2020
BMW	530i / 530i xDrive	G30	B46 2.0L	2017-2019
BMW	540i / 540i xDrive	G30	First-generation B58 3.0L	2017-2019
BMW	640i xDrive Gran Turismo	G32	First-generation B58 3.0L	2018-2019
BMW	740e xDrive iPerformance	G11/G12	B48 2.0L	2017-2019
BMW	740i / 740i xDrive	G11/G12	First-generation B58 3.0L	2017-2019
BMW	X1 sDrive28i / xDrive28i	F48	B46 2.0L	2016-2019
BMW	X2 sDrive28i / xDrive28i	F39	B46 2.0L	2018-2019
BMW	X3 sDrive30i / xDrive30i	G01	B46 2.0L	2018-2019
BMW	X3 M40i	G01	First-generation B58 3.0L	2018-2019
BMW	X4 xDrive30i	G02	B46 2.0L	2019
BMW	X4 M40i	G02	First-generation B58 3.0L	2019
MINI	Cooper Hardtop 2 Door / 4 Door	F56, F55	B38 1.5L	2014-2019
MINI	Cooper S Hardtop 2 Door / 4 Door	F56, F55	B46/B48 2.0L	2014-2019
MINI	John Cooper Works Hardtop	F56	B48 2.0L	2015-2019
MINI	Cooper / Cooper S Convertible	F57	B38/B46/B48	2016-2019
MINI	John Cooper Works Convertible	F57	B48 2.0L	2016-2019
MINI	Cooper / Cooper S Clubman	F54	B38/B46/B48	2016-2019
MINI	John Cooper Works Clubman	F54	B48 2.0L	2017-2019
MINI	Cooper / Cooper S Countryman	F60	B38/B46/B48	2017-2019
MINI	John Cooper Works Countryman	F60	B48 2.0L	2017-2019
